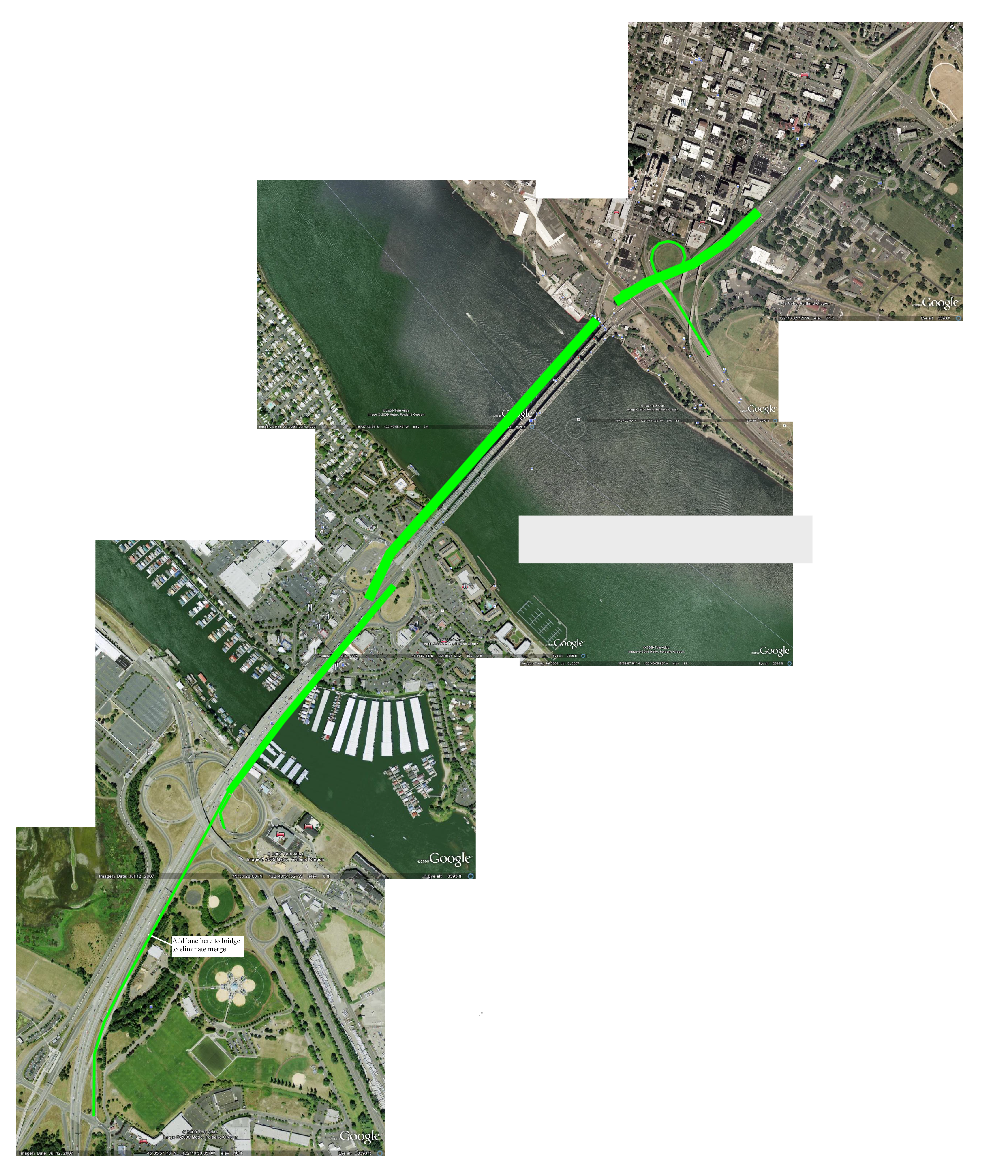

New South Bound bridge lands here and joins existing roadbed
New South Bound bridge lands here and joins existing roadbed
The Quay could remain intact.
(240 ft btwn building and old bridge)
Hotel could remain intact.
(136 ft btwn building and old bridge)
Add lane from here to across bridge to eliminate merge
This is 5 lanes:
   3 from I5
   1 from Hayden Meadows
   1 From Marine Drive
  (Bridge has 79 ft wide North bound lane space if bike/ped moved & structure is OK)
Bridge ~ 33’ above grade
Bridge meets existing grade
Bridge is 110’ above the channel
Cost Savings Compared to CRC
·
Bridge lands on Hayden Island near the middle of island to join existing road, eliminating expensive raising of roadway through Hayden Island. Few changes required on Hayden Island.
·
Delta Park, Marine Drive, Hayden Island on ramps kept intact  and extended over bridge to allow adequate room for weave.
·
NO interchange reworks except SR 14 are required (because of height difference to new bridge).
·
Cost effective transit is in shared right of way. 1650 current transit users DO NOT justify a BILLION dollar rail line.
·
Elimination of transit right of way saves many businesses including the Quay & close to a billion dollars in transit construction cost.
Key Features of the Our Option A

Overview      Key features      Option A      Cost      Option B      Cost    Tolls?

Key features:
·
Lowest cost option
·
Keeps current bridges for 6 North Lanes
·
Adds new Southbound bridge with 6 lanes
·
Solves Hayden island, Marine Drive and Hayden Island on ramps problems.
·
Only SR-14 on ramp requires rebuilding.
·
Height is 110 ft at the current channel location.
·
Max grade is 2%
·
Northbound bridge can be added later if justified.
·
True high capacity transit is provided by frequent buses in free flowing general purpose lanes.
